Description
Note: a is not enough to cut a work-piece.

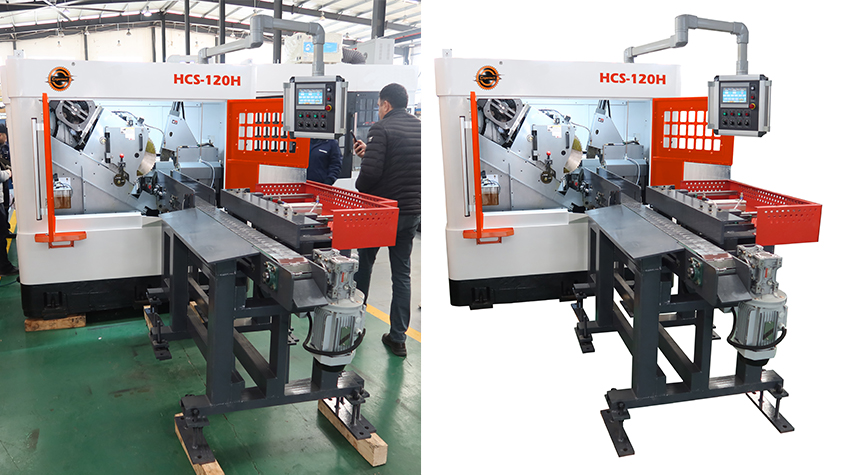

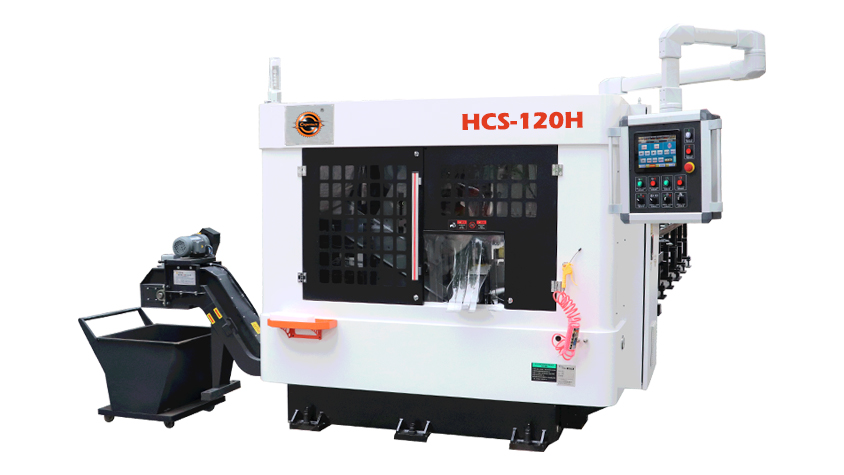

MODEL | UNIT | HCS-75H | HCS-90H | HCS-120H | |
Sawing capacity | Round bar | mm | 12-75 | 12-90 | 20-120 |
Square bar | mm | 12-58 | 12-70 | 20-80 | |
Round tube | mm | 12-75 | 12-90 | 20-120 | |
Square tube | mm | 12-58 | 12-70 | 20-80 | |
Spindle box | TCT super hard blade | mm | 285t2.0 | 315t2.25 | 380t2.6 |
Spindle motor | kW | 11 | 11 | 11/15 | |
Spindle speed | rpm | 30-150 | 30-150 | 20-120 | |
Cut-off feeding mode | AC servo motor, ball screw, linear guideway | ||||
Main clamp mode | Hydraulic, one set of vertical and horizontal clamps | ||||
Blade debris removal device | Passive round wire brush | ||||
Gear backlash compensation device | Through shaft coupling magnetic powder brake | ||||
Feeding clamp(vice) | Feeding drive mode | AC servo motor, ball screw, swing feed, linear guideway feeding | |||
Feeding clamp mode | Hydraulic, horizontal clamp | ||||
Material front end removal length | mm | 10-99 (No cutting head is optional) | |||
Material rear end residual length | mm | 65+a | 10-99 (No cutting head is optional) | 75+a | |
Single feeding length | mm | 10-800 | 10-800 | 10-800 | |
Automatic feeding device | Allowable material placement length | mm | 3000-6000 | ||
Feeding method | Pre-arranged, Hydraulic lift | ||||
Hydraulic station | Hydraulic pump type | Variable displacement vane pump | |||
Hydraulic drive motor | kW | 2.25(4P) | 2.25(4P) | 3.75(4P) | |
Rated pressure of hydraulic system | MPa | 4-6 | 4-6 | 4-6 | |
Hydraulic oil capacity | L | 70 | 90 | 110 | |
Others | Overall dimensions | mm | 7500x2900x2100 | 7500x2900x2100 | 7700x3200x2250 |
Weight | kg | 5100 | 5250 | 6000 | |
Standard accessories:
1.Blade sway anti-vibration device
2.Material distribution device (Pneumatic, reciprocating)
3.Automatic centralized grease lubrication system
4. Oil mist coolant system
5.Chip conveyor
6.LED working light
7.Heat exchanger (Model 200-300: Air conditioner)
8.Air spray gun
9:Mechanical oil mist collector
10.Circular saw blade
11.Tools and tool box
Optional accessories:
1.Electrostatic oil mist collector
2.Cluster feeding device (Bundle loading, first choice for long material cutting)
3.The third clamp
4.Active round wire brush (Model 75/90/120)
5.Shared material rack for square and round materials
6.Long material receiving device (discharging device)
