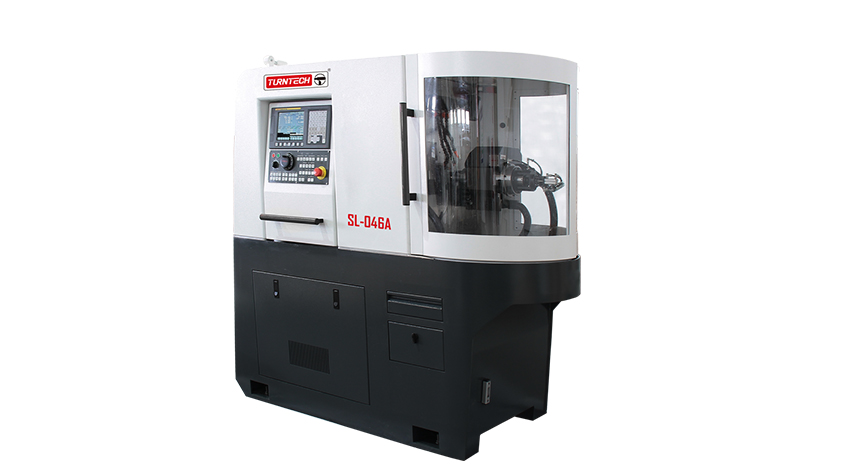

SBC-220A
Description
With double channel CNC control system, 8-axis 4-linkage, specialized for precision machining of small parts.
It adopts the bar material for continuous automatic cycle machining, which can complete the process of turning round, front drilling, front tapping, front boring, threading, grooving, transverse drilling, square milling, groove milling, radial tapping, cutting, back turning, back drilling, back boring, back tapping and so on.
1.Jointly designed in Switzerland and Japan, produced by Chinese OEM.
2.Integrated machine base to ensure rigidity and stability.
3.Built in spindle motor for both main/sub spindle. High precision ball bearing. CS axis control and indexing.
4.Compact structure with low vibration and noise.

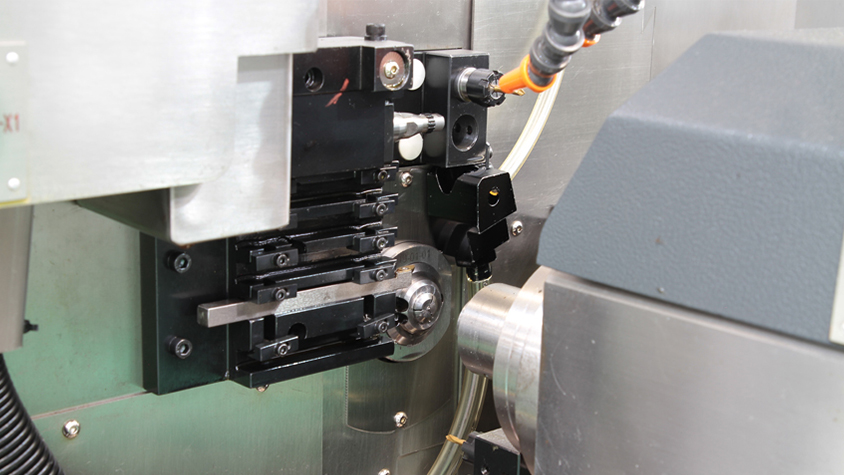

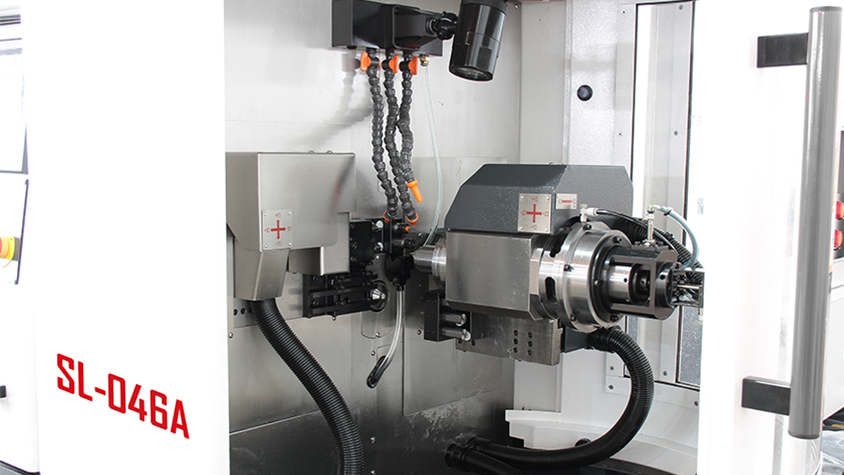

5.Gang tool slide with movable headstock. Full stroke rotary guide-bush for supporting during cutting.

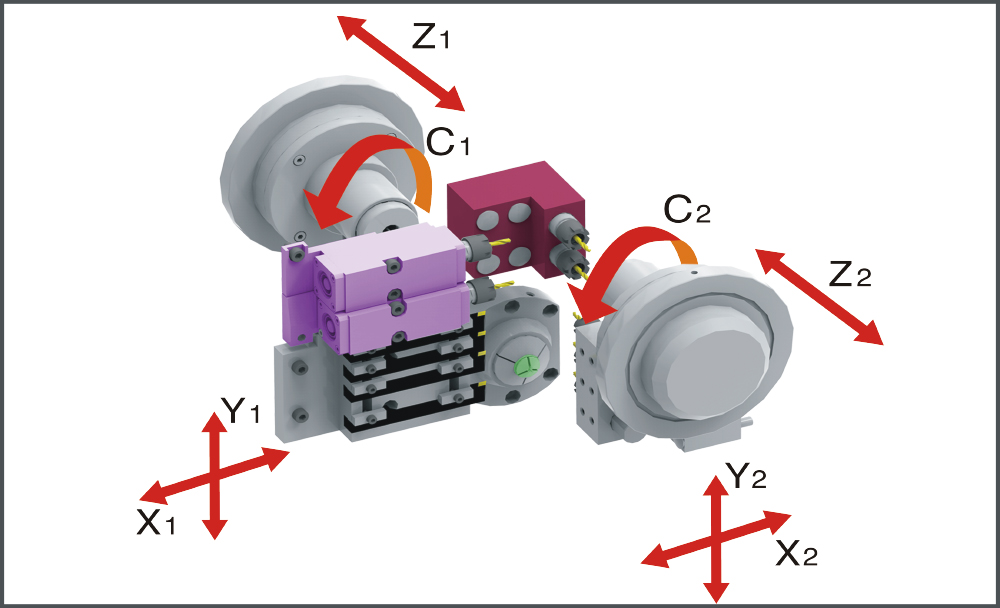

6.AC servo control for X1, X2, Z1, Z2, Y1, Y2 axes. 4 axes could be simultaneously controlled. Built-in absolute encoder. High precision linear guideway and ball screw, high positioning accuracy and rapid travel speed.
7.FANUC 0i-TF Plus dual port control system with LCD display and MPG control. Self-diagnosis is available.

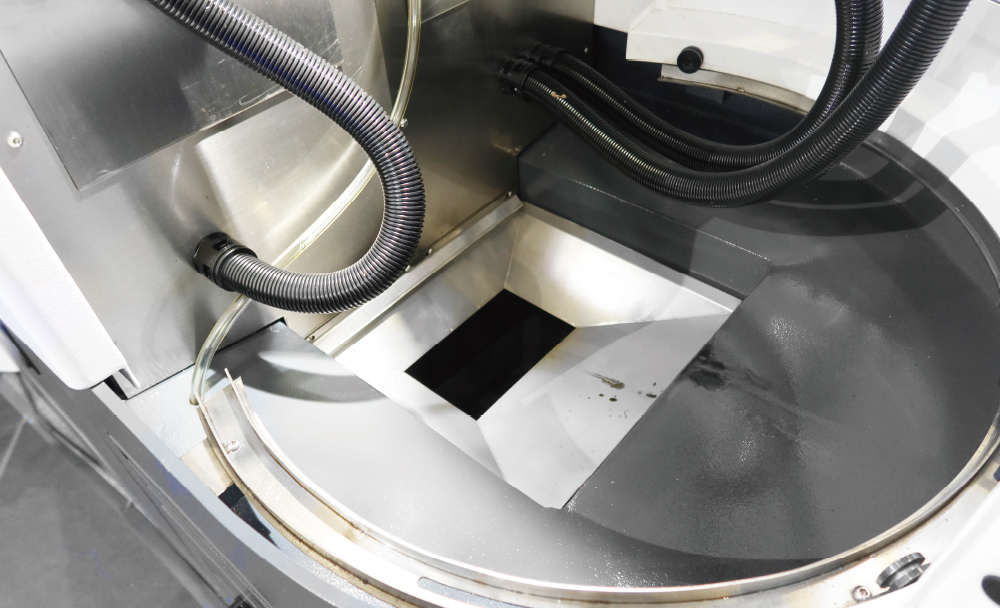

8.Full closed cover with tempered glass observing window for machining zone.
9.Emergency stop button to stop the machine whenever necessary.
10.Inter-lock device for spindle and spindle collet.
11.Override protection for X1, Y1, Z1, X2, Z2 slide and overload protection for X1, Y1, Z1, X2, Z2 servo motor and cooling motor.
12.After connecting with the bar feeder, automatic feeding of multi-bar material can be realized.
1. MACHINE SPECIFICATION
No. | Description | SL-046A Specification | |
1 | Max. bar-stock dia. | Φ4mm | |
2 | Max. working length | 30mm | |
3 | Main spindle speed | 16000rpm | |
4 | Back spindle speed | 16000rpm | |
5 | Through hole (spindle) | Φ10mm | |
6 | Center height (spindle) | 1150mm | |
7 | Main motor power (Main/back spindle) | 0.75/1.1kW | |
8 | Max. main spindle drilling dia. | Φ3mm | |
9 | Max. main spindle tapping dia. | M3 | |
10 | O.D turning tool capacity | 4T | |
11 | Front drilling tool | 3T | |
12 | Radial live tool | 2T | |
13 | Back drilling tool | 2T | |
14 | Tool shank | □8×100-120mm | |
15 | Live tool speed | 8000r/min | |
16 | Live tool motor power | 0.4kW | |
17 | Max. live tool drilling dia. | Φ2mm | |
18 | Max. live tool tapping dia. | M2 | |
19 | Control mode | Semi-closed | |
20 | Detecting element | Built-in encoder | |
21 | C1, C2 minimum increments | 0.001° | |
22 | X1, Y1, Z1, X2, Z2 increments | 0.001mm | |
23 | X1, Y1, Z1, X2, Z2 rapid feed | 20m/min | |
24 | X1, Z1, X2, Z2 servo motor power | 0.4kW | |
Y1, Y2 servo motor power | 0.5kW | ||
25 | Repeat positioning accuracy | X1 | 0.002mm |
Z1 | 0.002mm | ||
Y1 | 0.002mm | ||
X2 | 0.002mm | ||
Z2 | 0.002mm | ||
Y2 | 0.002mm | ||
26 | Radial run out of the positioning hole for pushing sleeve in the spindle | 0.004mm | |
27 | Coolant motor power | 0.15kW | |
28 | Power input | 10KVA | |
29 | Pressure requirement | 0.5MPa. 100Nl/min | |
30 | Overall dimensions | 1880x940x1750mm | |
31 | Weight | 1000kg | |
2. NC Parameter
No. | Description |
1 | Control system: FANUC 0i-TF Plus |
2 | 8-axis control, 4-axis simultaneous control |
3 | Inching system/metric system interchangeable |
4 | Error compensation |
5 | AUTO, MDI, JOG |
6 | IDLE, Single block, program skip, optional stop |
7 | G00 rapid positioning |
8 | Linear, circular interpolation (G01, G02, G03) |
9 | Dwell (G04) |
10 | Feed override, JOG override |
11 | Linear speed control |
12 | Decimal programming |
13 | Absolute/incremental programming |
14 | Fixed cycle |
15 | Program storage 2MB |
16 | Cutting tool compensation |
17 | Status display |
18 | Self-diagnosis |
19 | Alarming and information display |
20 | English display |
21 | 10.4″ LCD |
3.NC function
No. | Description | Specification |
1 | CNC control | FANUC 0i-TF Plus |
2 | Controlled axis | 8 axes: X1, Y1, Z1, C1, X2, Y2, Z2, C2 |
3 | Input mode | MDI |
4 | Interpolation | Linear or circular |
5 | Minimum increments | 0.001mm |
6 | MPG increment | 0.1/0.01/0.001mm |
7 | Feed override | 0-150% |
8 | Input/output | CF card, USB |
9 | Language | English |
4. Standard accessory
No. | Description | Qty(PC) | Remark |
1 | Cover | 1 | |
2 | Special tools | 1 | |
3 | Base | 1 | |
4 | Brand plate | 1 | Including safety label |
5 | Column | 1 | Z1, X1, Y1, X2, Y2 |
6 | Spindle | 1 | FANUC built-in motor |
7 | Tool plate | 1 | 4T O.D. tool capacity |
8 | 3-axis end-face drilling | 1 | 3T front drilling tools (ER11) |
9 | Live tool mounting device | 1 | 2T radial live tools (ER11) |
Live tool | |||
10 | Pneumatic system | 1 | SMC |
11 | Coolant system | 1 | |
12 | Lubricating system | 1 | LUBE |
13 | Electric system | 1 | Schneider/Siemens |
14 | Back spindle slide | 1 | Z2 |
15 | Back spindle | 1 | FANUC built-in motor |
16 | Back drilling | 1 | 2T back drilling tools (ER11) |
17 | Working lamp | 1 | DC24V |
18 | Tri-color lamp | 1 | |
19 | Fixed guide bush | 1 |
5. Optional
No. | Description | Specification | Remark |
1 | Rotary guide bush | ||
2 | Spindle collet | Φ1-Φ4mm | 0.1mm step，according to bar stock diameter |
3 | Back-spindle collet | Φ1-Φ4mm | 0.1mm step，according to bar stock diameter |
4 | Guide bush collet | Φ1-Φ4mm | 0.1mm step，according to bar stock diameter |
5 | Live tool collet | Φ1-Φ7mm | 0.5mm step，according to tool shank diameter |
6 | Bar feeder | TURNTECH; LNS; PRO; BAR LOAD |
6. Purchased parts
No. | Description | Manufacture |
1 | Main/back spindle bearing | NSK or FAG |
2 | Ball screw bearing | NSK or FAG |
3 | Linear guideway | THK or NSK |
4 | Ball screw | THK or NSK |
5 | Control system | FANUC |
7. Operation tools
No. | Description | Specification | Qty(PC) | Remark |
1 | Spanner | 25mm | 1 | CHINA |
2 | Guide bush spanner | 1 | CHINA | |
3 | Spanner | 12mm | 1 | CHINA |
4 | Spanner | 19mm | 1 | CHINA |
5 | Spanner | 32mm | 1 | CHINA |
6 | Single head dead spanner | 8mm | 1 | CHINA |
7 | Single head dead spanner | 14mm | 1 | CHINA |
8 | Single head dead spanner | 17mm | 1 | CHINA |
9 | Hexagon spanner | 1.5-10mm | 1 | CHINA |
10 | Hook spanner | 34-42mm | 1 | CHINA |
11 | Spanner | ER11M | 1 | CHINA |
8. Spare parts
No. | Description | Remark |
1 | Toggle | Standard 2 set of spares. 1 set include 2 pieces |
2 | Collet |
