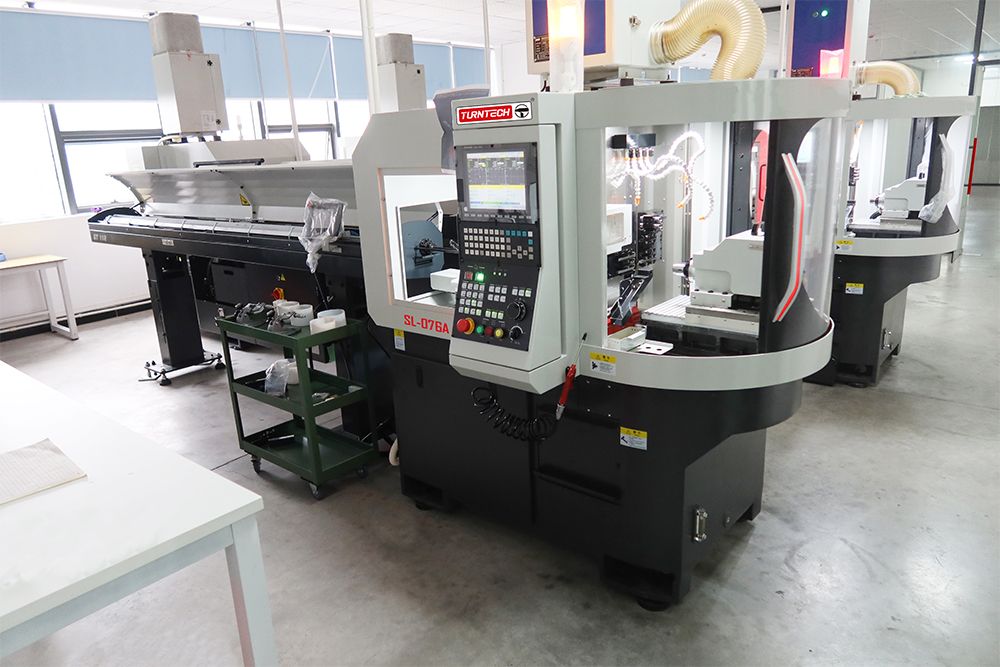

1. Our most compact CNC Swiss lathe, co-developed by Swiss-Japanese engineering teams; ideal for high-precision, efficient, and multi-process machining of micro parts.

2. Symmetrical semi-circular design with a 180° visible/accessible machining area (overlapping arc sliding doors + large observation window), for effortless tool setup and maintenance.

3. Optimized symmetric cast frame: boasts excellent thermal stability, consistent machining precision, a compact footprint, and low vibration/noise levels.

4. CNC control system: SYNTECH 220TB PLUS (10.4-inch display).

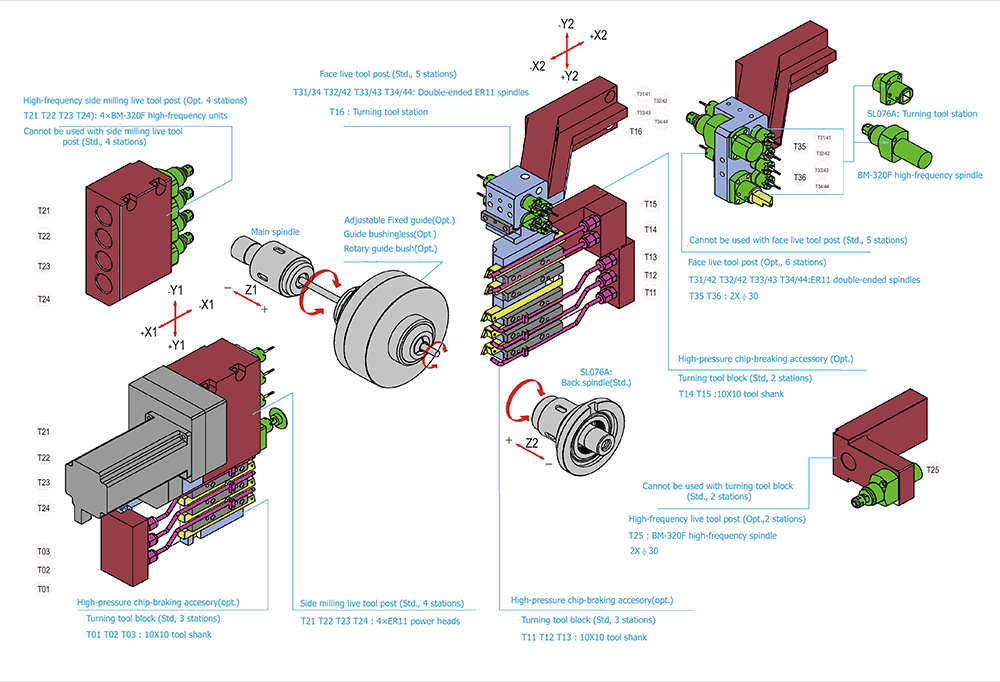

5. Total tool capacity: 22 units, including an optional 2 pieces high-frequency side milling motor spindles (model: NAKANISHI BM-320F,8000rpm,140W).

6. Three machining modes available: Standard fixed guide bush, optional mechanical synchronous guide bush, and servo-electric synchronous guide bush.

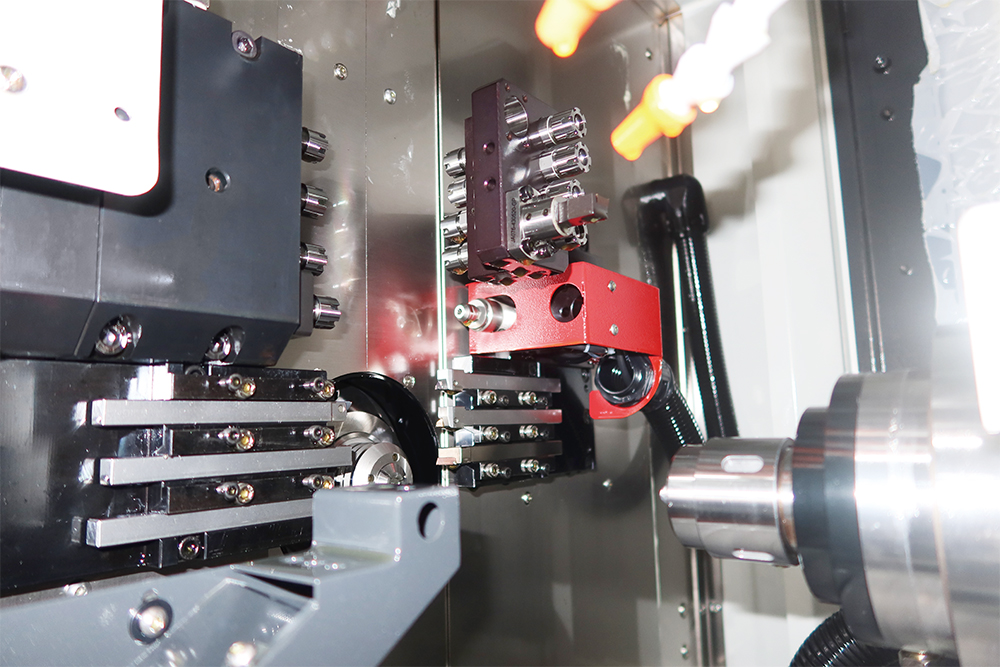

7. High-speed internally cooled electric spindle and sub-spindle for enhanced machining efficiency and precision retention. Repeat positioning accuracy: ≤0.003mm.

8. Imported precision bearings, ball screws, and linear guideways guarantee long-term machining precision stability.

9. Optional bar feeder enables automatic cyclic loading/unloading, supporting one-operator-multiple-machines operation as well as efficient, fast, and clean production.

1. MACHINE SPECIFICATION
