Description
1.Variable speed display.
2.The headstock swivels ±90°
3. Optional: Foot stand; Coolant system; LED lamp; Vice.

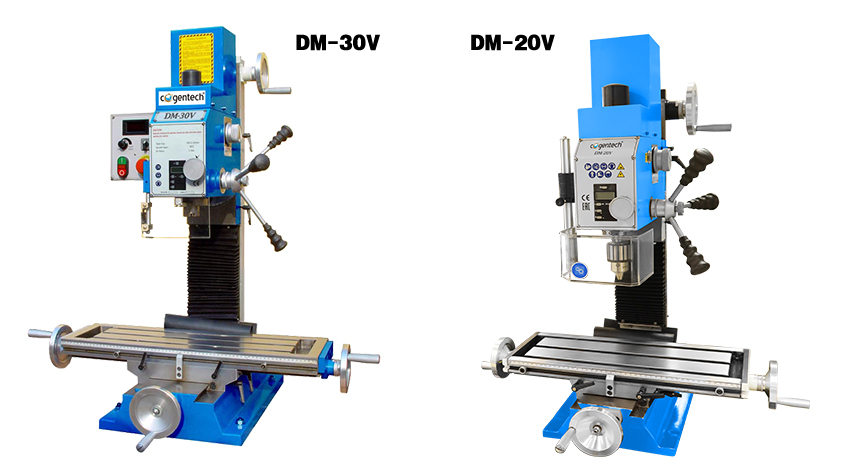

MODEL | UNIT | DM-16V | DM-20V | DM-25V | DM-30V |
Drilling capacity | mm | 16 | 20 | 25 | 30 |
Face mill capacity | mm | 52 | 65 | 65 | 75 |
End mill capacity | mm | 16 | 20 | 25 | 25 |
Spindle taper | MT.2 | MT.2 | MT.3 | MT.3/R8/ISO30 | |
Spindle speed | rpm | 50-2250 | 50-2250 | 50-2250 | 50-2250 |
Spindle travel | mm | 50 | 50 | 50 | 70 |
Distance from spindle to table | mm | 280 | 360 | 310 | 470 |
Table size | mm | 400x120;500x140 | 580x180;700x180 | 500x180;700x180 | 730x210;840x210 |
Table travel (X/Y/Z) | mm | 230/310x145x200 | 290/490x175x280 | 290/490x175x280 | 430/540x220x340 |
Main motor power | kW | 0.6 | 0.75 | 0.9 | 1.1 |
Packing size | mm | 480x440x840; 520x510x840 | 610x560x900; 770x720x910 | 620x560x900; 770x720x910 | 940x730x1180; 1050x730x1180 |
Weight | kg | 60/80; 70/90 | 110/130; 130/150 | 120/140; 140/160 | 205/245; 220/260 |
