SLM-160
Description

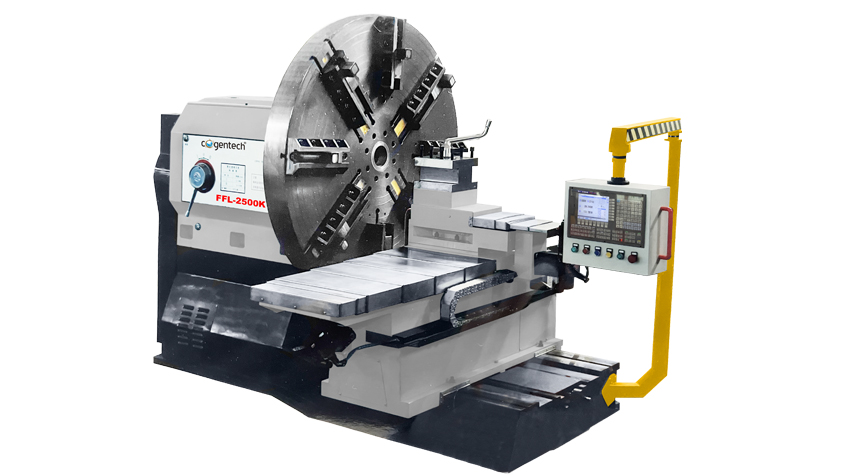

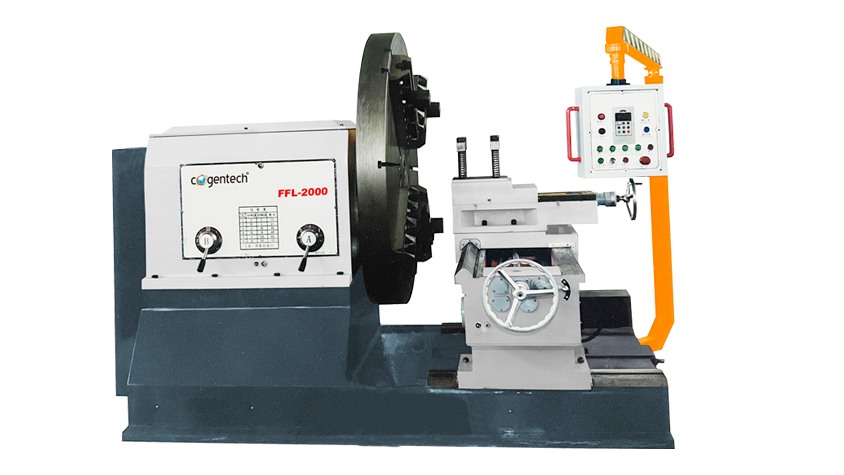

1. FFL-1600K/2000K/2500K: control system FANUC/SIEMENS/GSK/KND available. Frequency conversion spindle motor. Electrical 4-station turret.
2. Suitable for turning disc, ring or thin-walled cylindrical workpiece with a maximum diameter of 2500 mm, short length, and light weight. Such as large wind power components, tire mold, large diameter flange tube plate, steam turbine accessories, flanges and so on.
MODEL | UNIT | FFL-1600 | FFL-1600K | FFL-2000 | FFL-2000K | FFL-2500 | FFL-2500K | ||
Capacity | Max. swing over bed | mm | 1600 | 2000 | 2500 | ||||
Chuck dia. | mm | 1200 | 1600 | 2000 | |||||
Max. workpiece length | mm | 400 | 400/700 | 700 | |||||
Max. workpiece weight | kg | 3000 | 5000 | 5000 | |||||
Travel | Cross/Longitudinal slide | mm | 880/400 | 1000/450 | 1250/450 | ||||
Feed speed | Cross/Longitudinal slide | mm/min | 1-1000 | 1-1000 | 1-1500 | 1-1500 | 1-1500 | 1-1500 | |
Spindle | Speed steps | steps | 6 | 2-gearshift variable speed | 6 | 2-gearshift variable speed | 6 | 2-gearshift variable speed | |
Speed range | rpm | 13-103 | 2-160 | 13-103 | 2-160 | 9-75 | 2-100 | ||
Motor power | kW | 11 | 11 | 11 | 11 | 15 | 15 | ||
Tool post | No. of tool | T | 4 | 4 | 4 | 4 | 4 | 4 | |
Others | Overall dimensions | mm | 3000x2000x1600 | 3000x2300x2000 | 3000x2500x2500 | ||||
Weight | kg | 5000 | 8000/9000 | 14000 | |||||
