SLK-300 / SLK-350
Description

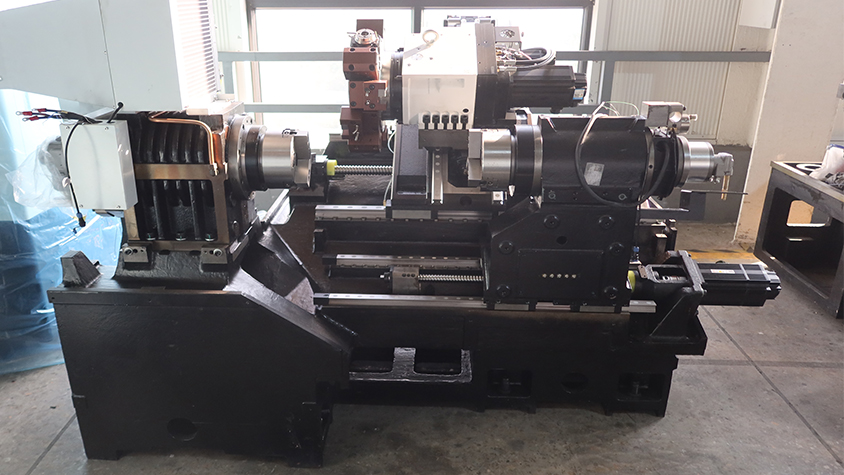

1.35°integrated slant bed, step type roller linear guideway.
2.Spindle driven by built-in motor directly, realize “zero transmission”. Compact design, light weight, low vibration, low thermal deformation.
3.Integrated power turret structure, and the high-precision 3-pc end-scale clutch is positioned to ensure positioning accuracy and clamping rigidity.
4.The electro-spindle, hydraulic through chuck and power turret with Y axis, suitable for complex shaft and plate workpiece processing.
5.TC-560MY servo programmable tailstock, high rigidity and high accuracy.

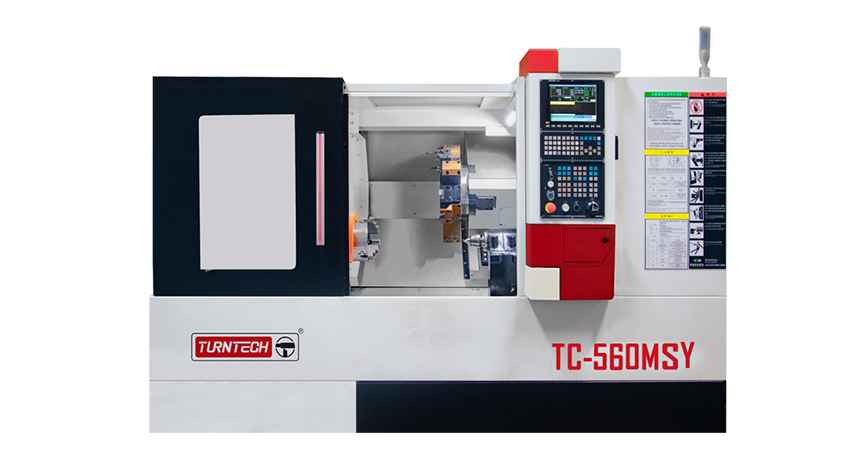

MODEL | UNIT | TC-560MSY | ||
Capacity | Max. swing over bed | mm | 560 | |
Max. swing over cross slide | mm | 300 | ||
Max. machining dia. | mm | 300 | ||
Max. turning length | mm | 350 | ||
Bar dia. | mm | ∅50 | ∅45 | |
Electro-spindle | Taper | A2-6 (Main spindle) | A2-5 (Sub spindle) | |
Bore | mm | ∅62 | ∅55 | |
Speed | rpm | 50-4000 | 50-5000 | |
Spindle power | kW | 18.7 | 10.8 | |
Spindel output torque | Nm | 155 | 37 | |
Chuck size | Inch | 8” | 6” | |
Feed rate | X axis travel | mm | 180 | |
Y axis travel | mm | ±50 | ||
Z axis travel | mm | 560 | ||
Sub-spindle travel | mm | 500 | ||
Z1 axis travel | mm | -- | ||
X axis rapid speed | m/min | 30 | ||
Y axis rapid speed | m/min | 10 | ||
Z axis rapid speed | m/min | 30 | ||
Z1 axis rapid speed | m/min | -- | ||
X axis servo motor torque | Nm | 11 | ||
Y axis servo motor torque | Nm | 10.5 | ||
Z axis servo motor torque | Nm | 11 | ||
Sub-spindle servo motor torque | Nm | 8.9 | ||
Z1 axis servo motor torque | Nm | -- | ||
Turret | Type | T | Power turret 12(BMT55) | |
Tool size | mm | 25x25/∅40/ER32 | ||
Tailstock | Tailstock taper | -- | ||
Tailstock travel | mm | -- | ||
Power source | Total rated power | KVA | 47 | |
Total rated current | A | 105 | ||
Others | Overall dimensions | mm | 2790x1900x1940 | |
Weight | kg | 4950 | ||
