TORNOS-410

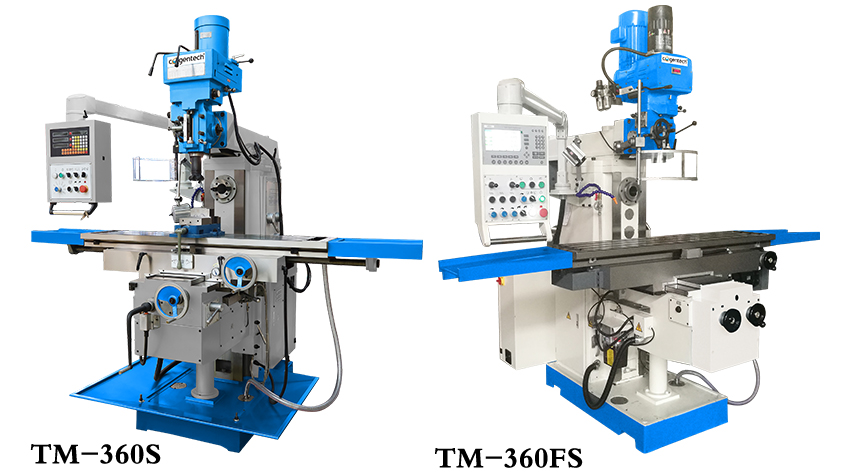

Description
1. TM-360S vertical head, standard 5HP step pulley head. Optional: 5HP speed 50-3750 (variable); 7.5HP speed 58-6000 (20 steps); 7.5HP speed 50-3750 (variable).
TM-360FS vertical head, standard 7.5HP, frequency conversion motor, variable speed.
2. One servo motor drive for infinitely variable feed in table 3 axes.
3. Standard horizontal milling arbor support.
MODEL | UNIT | TM-360S | TM-360FS |
Table size | mm | 1600x360 | |
Table travel (X,Y,Z) | mm | 1300x320x450 | |
T-slot (No./width/distance) | mm | 3-18-70 | |
Table load | kg | 350 | |
Table feed (X,Y,Z) | mm/min | 30-750/20-500/15-375 (8 steps) | |
Table rapid feed (X,Y,Z) | mm/min | 1200/800/600 | |
Table swivel degree | ±45°(opt.) | ||
Spindle taper | IS040 (V) ; IS050 (H) | ||
Spindle speeds | rpm | V: 80-4660 (16 steps); H: 60-1800 (12 steps) | V: 50-5000 (frequency variable); H: 60-1800 (12 steps) |
Ram stroke | mm | 550 | |
Vertical spindle nose to table surface | mm | 200-650 | |
Horizontal spindle to table surface | mm | 20-470 | |
Main motor power | kW | 3.7 (V); 5.5 (H) | 5.5 (V); 5.5 (H) |
Feed motor power | Nm | 10 | |
Overall dimensions | mm | 2520x2250x2500 | |
Weight | kg | 2500 | 2600 |
